Radar Antennas & Systems

Through the development of high-efficiency ship radar and airport surveillance radar systems incorporating SSPA technology, we have independently secured core RF technologies of various radar products.

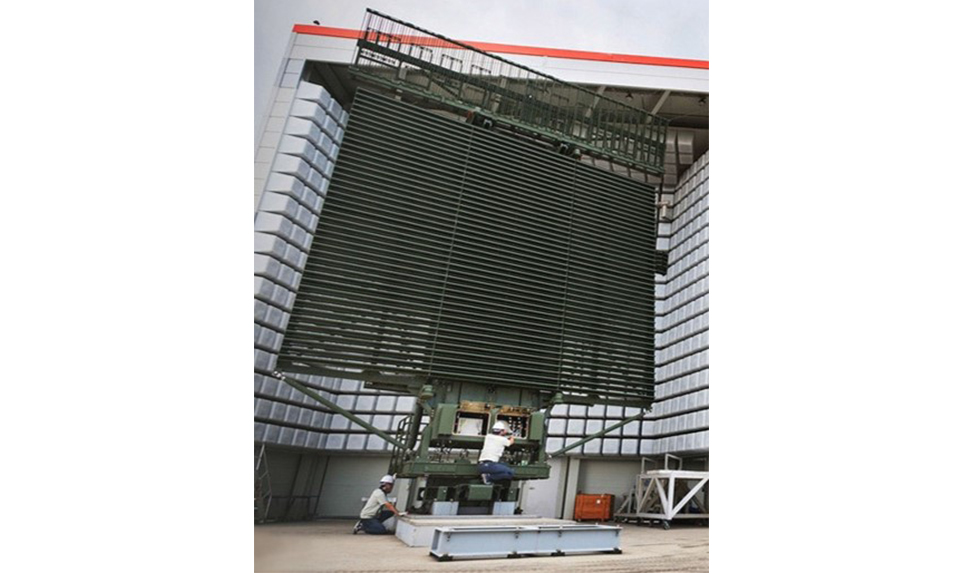

  • Long-Range Radar Antenna
    • L-Band Radar
    • Array of High gain antennas
    • Low level of side lobe

  • Next-gen Detection Radar
    • Power divider for phase signal assignment
    • Wave filter for alloted bandwidth
    • Coupler for enhancing transmission at compensation mode

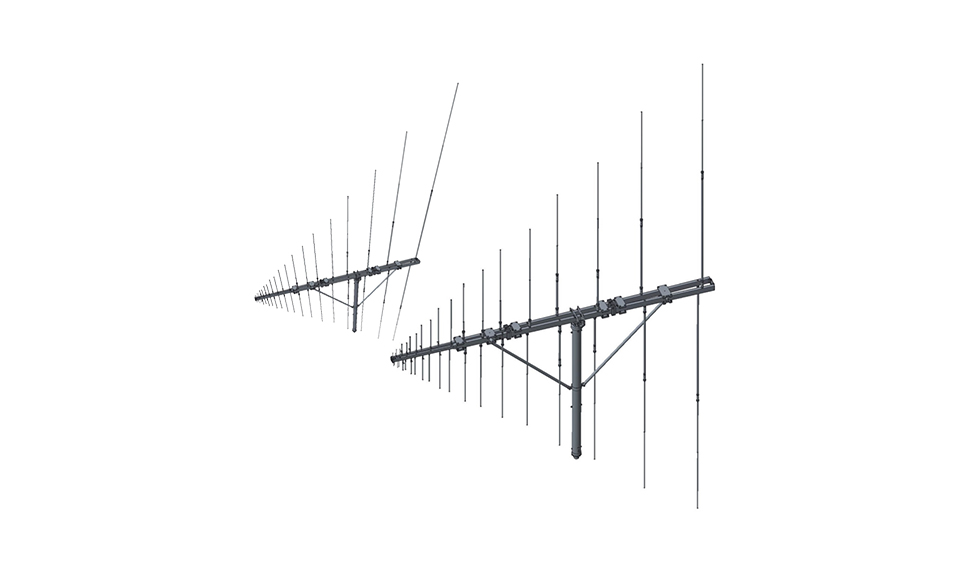

  • EA (Electric Warfare) Antenna
    • Support VHF & UHF Bandwidth
    • Designed for ultra-wideband (about 500MHz)
    • Support auto-spreading

  • PAR (Precision Approach Radar) Antenna
    • Dipole Array Antenna
    • Acitve phased array antenna
    • Excellent active VSWR

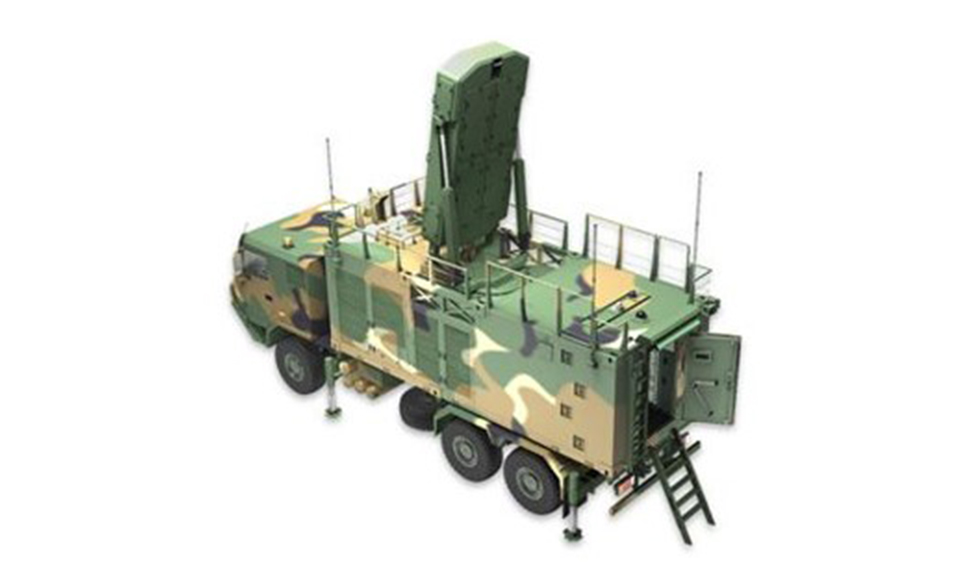

  • Mobile TACAN (Tactical Air Navigation) Antenna
    • Electronic TACAN Antenna developed first in the country
    • Relocating support by installation on vehicle
    • Generating 15Hz/135Hz Modulation signal

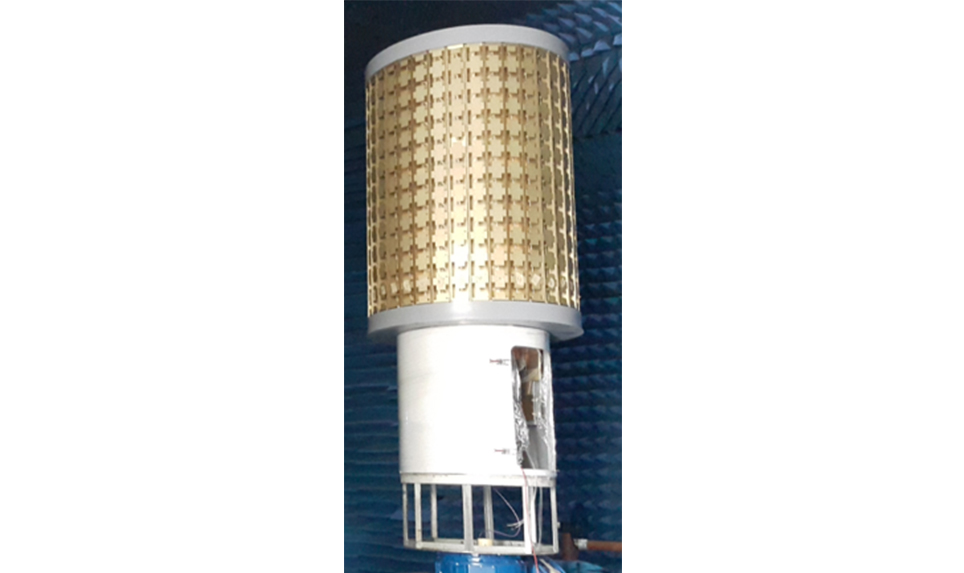

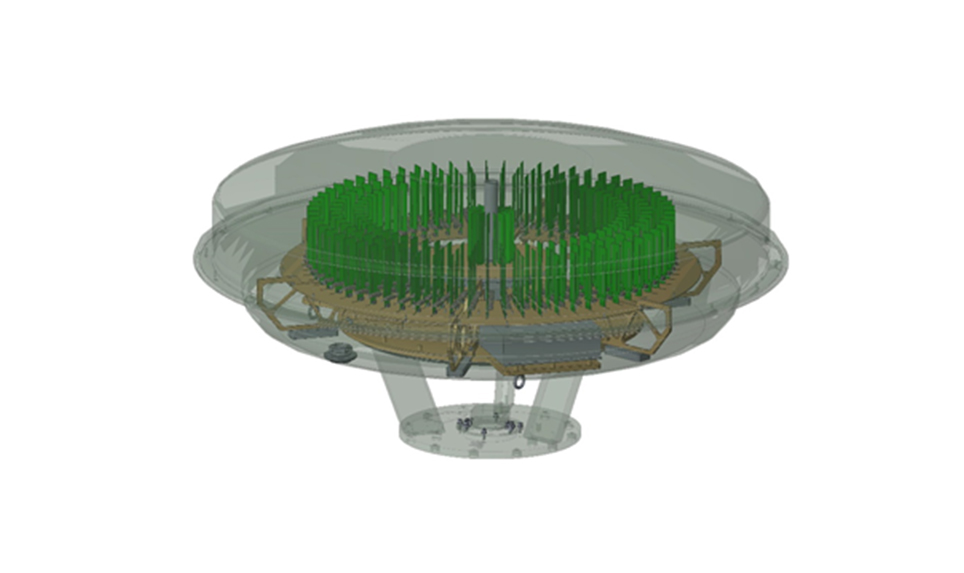

  • TACAN Antenna
    • L-band Slot array Antenna
    • Generating AM Moudulation signal
    • Butler Matrix type

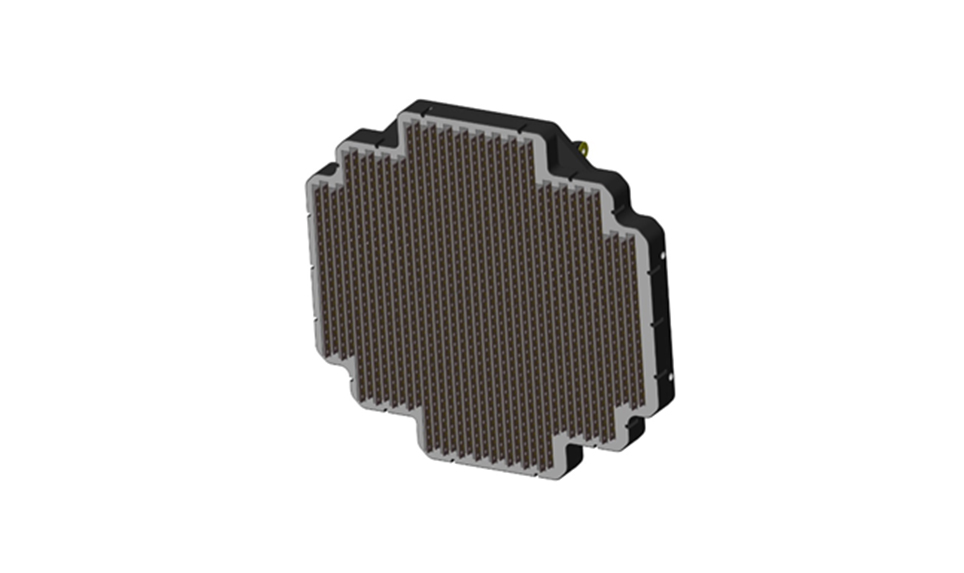

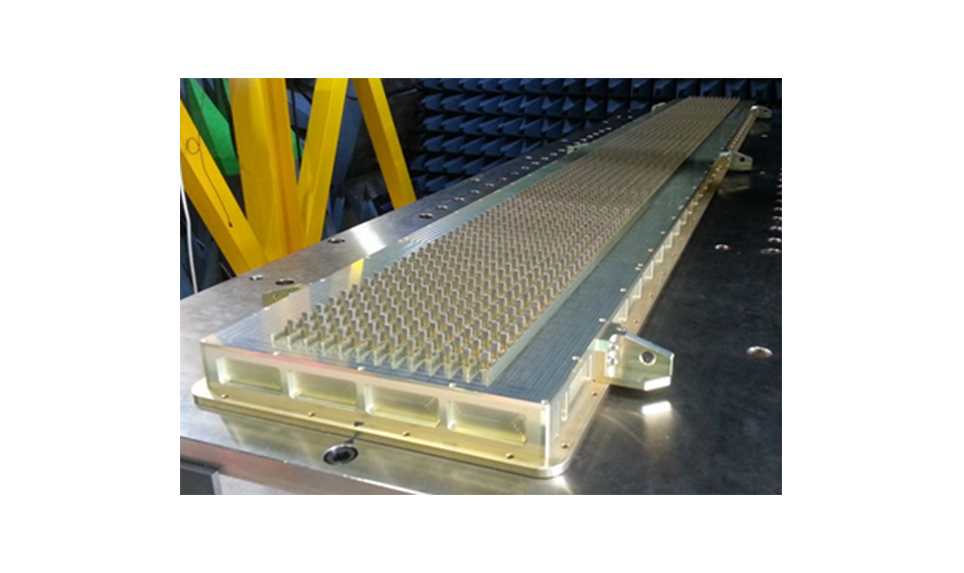

  • AESA (Active Electronically Scanned Array) Antenna
    • Antenna for Active Phased Array Radar
    • Dipole array structured
    • High isolation rate of Antenna elements

  • S-Band Marine Radar
    • Solid State Power Amplifier
    • Ability to remove clutter and interference signal
    • DSP Technology (Pulse Compression / Doppler)
    • Low power consumption and high durability

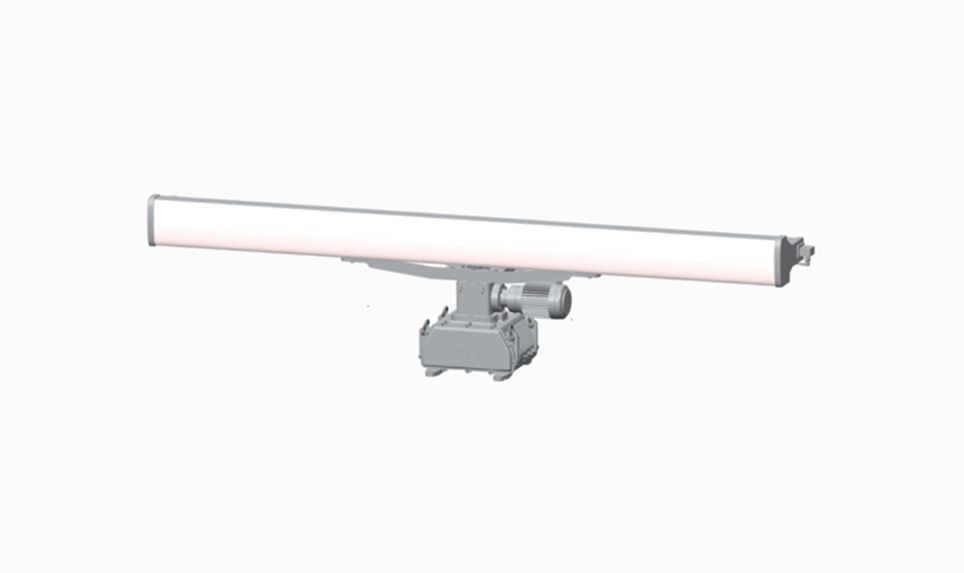

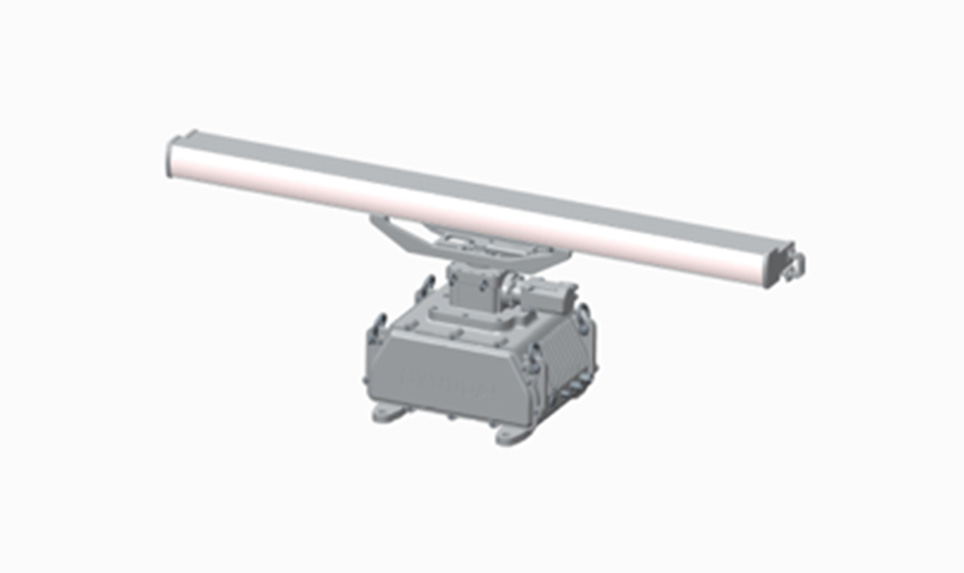

  • X-Band Marine Radar
    • Solid State Power Amplifier
    • Ability to remove clutter and interference signal
    • DSP Technology (Pulse Compression / Doppler)
    • Low power consumption and high durability

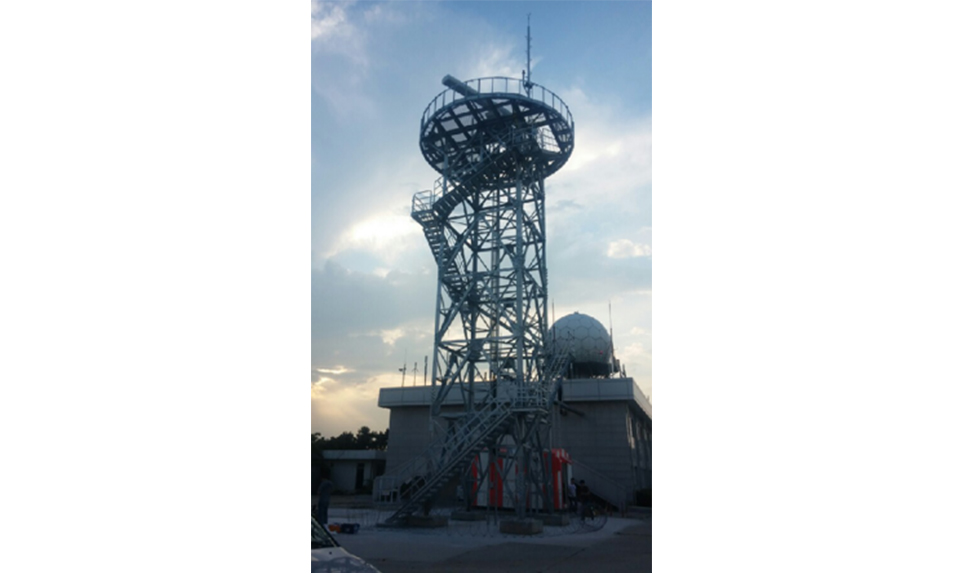

  • ASDE (Airport Surface Detection Equipment) System
    • Fully Coherent pulse compression Radar
    • Solid State Transmitter
    • Graceful Degradation (SSPA)
    • LCMS (Local Control) & RCMS (Remote Control) by IP network
    • Frequency Diversity (Max 4 frequency)
    • Sector blanking transmission

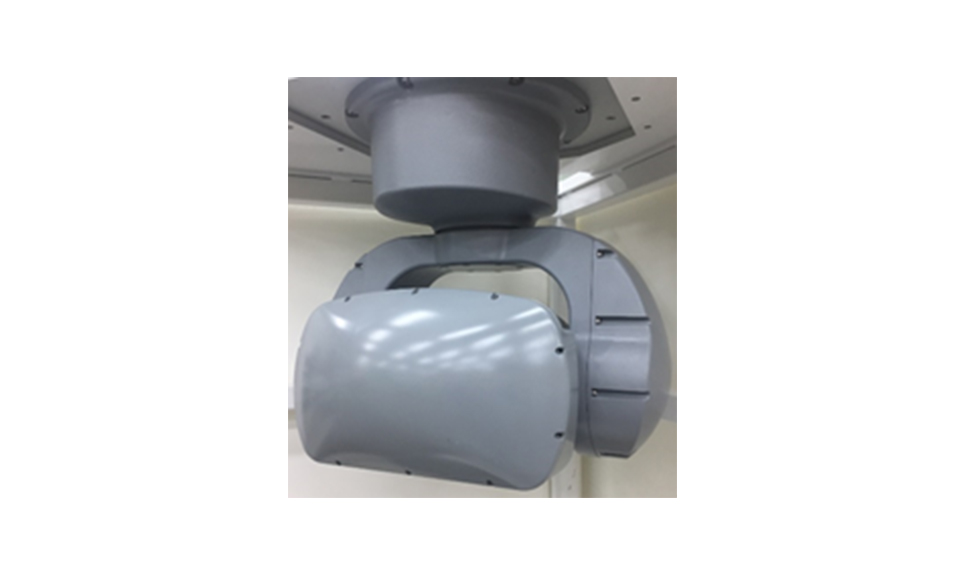

  • Anti-Collision Radar System for Helicopter
    • Helicopter radar system for anti-collision
    • Tracking with 2 axis driver
    • Slot-Array Antenna
